# Table Lookups

In this tutorial, we will review the ways to perform direct table lookups in Concrete-Numpy.

## Direct table lookup

Concrete-Numpy provides a `LookupTable` class for you to create your own tables and apply them in your circuits.
`LookupTable`s can have any number of elements. Let's call them N. As long as the lookup variable is in range [-N, N), table lookup is valid.
If you go out of bounds of this range, you will get the following error:
IndexError: index 10 is out of bounds for axis 0 with size 6
The number of elements in the lookup table doesn't affect performance in any way.

### With scalars.

You can create the lookup table using a list of integers and apply it using indexing:
import concrete.numpy as cnp
table = cnp.LookupTable([2, -1, 3, 0])
@cnp.compiler({"x": "encrypted"})
def f(x):
return table[x]
inputset = range(4)
circuit = f.compile(inputset)
assert circuit.encrypt_run_decrypt(0) == table == 2
assert circuit.encrypt_run_decrypt(1) == table == -1
assert circuit.encrypt_run_decrypt(2) == table == 3
assert circuit.encrypt_run_decrypt(3) == table == 0

### With tensors.

When you apply the table lookup to a tensor, you apply the scalar table lookup to each element of the tensor:
import concrete.numpy as cnp
import numpy as np
table = cnp.LookupTable([2, -1, 3, 0])
@cnp.compiler({"x": "encrypted"})
def f(x):
return table[x]
inputset = [np.random.randint(0, 4, size=(2, 3)) for _ in range(10)]
circuit = f.compile(inputset)
sample = [
[0, 1, 3],
[2, 3, 1],
]
expected_output = [
[2, -1, 0],
[3, 0, -1],
]
actual_output = circuit.encrypt_run_decrypt(np.array(sample))
for i in range(2):
for j in range(3):
assert actual_output[i][j] == expected_output[i][j] == table[sample[i][j]]

### With negative values.

`LookupTable` mimics array indexing in Python, which means if the lookup variable is negative, the table is looked up from the back:
import concrete.numpy as cnp
table = cnp.LookupTable([2, -1, 3, 0])
@cnp.compiler({"x": "encrypted"})
def f(x):
return table[-x]
inputset = range(1, 5)
circuit = f.compile(inputset)
assert circuit.encrypt_run_decrypt(1) == table[-1] == 0
assert circuit.encrypt_run_decrypt(2) == table[-2] == 3
assert circuit.encrypt_run_decrypt(3) == table[-3] == -1
assert circuit.encrypt_run_decrypt(4) == table[-4] == 2

## Direct multi table lookup

In case you want to apply a different lookup table to each element of a tensor, you can have a `LookupTable` of `LookupTable`s:
import concrete.numpy as cnp
import numpy as np
squared = cnp.LookupTable([i ** 2 for i in range(4)])
cubed = cnp.LookupTable([i ** 3 for i in range(4)])
table = cnp.LookupTable([
[squared, cubed],
[squared, cubed],
[squared, cubed],
])
@cnp.compiler({"x": "encrypted"})
def f(x):
return table[x]
inputset = [np.random.randint(0, 4, size=(3, 2)) for _ in range(10)]
circuit = f.compile(inputset)
sample = [
[0, 1],
[2, 3],
[3, 0],
]
expected_output = [
[0, 1],
[4, 27],
[9, 0]
]
actual_output = circuit.encrypt_run_decrypt(np.array(sample))
for i in range(3):
for j in range(2):
if j == 0:
assert actual_output[i][j] == expected_output[i][j] == squared[sample[i][j]]
else:
assert actual_output[i][j] == expected_output[i][j] == cubed[sample[i][j]]
In this example, we applied a `squared` table to the first column and a `cubed` table to the second one.

## Fused table lookup

Concrete-Numpy tries to fuse some operations into table lookups automatically, so you don't need to create the lookup tables manually:
import concrete.numpy as cnp
import numpy as np
@cnp.compiler({"x": "encrypted"})
def f(x):
return (42 * np.sin(x)).astype(np.int64) // 10
inputset = range(8)
circuit = f.compile(inputset)
for x in range(8):
assert circuit.encrypt_run_decrypt(x) == f(x)
All lookup tables need to be from integers to integers. So, without `.astype(np.int64)`, Concrete-Numpy will not be able to fuse.

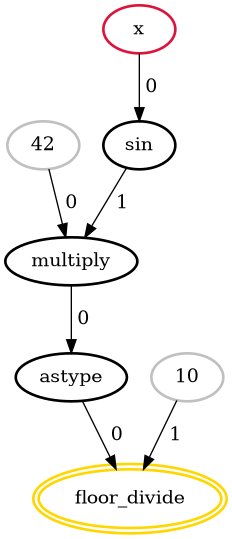

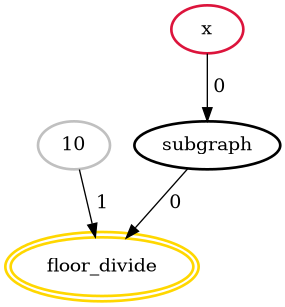

The function is first traced into: Then, Concrete-Numpy fuses appropriate nodes: Fusing makes the code more readable and easier to modify, so try to utilize it over manual `LookupTable`s as much as possible.
